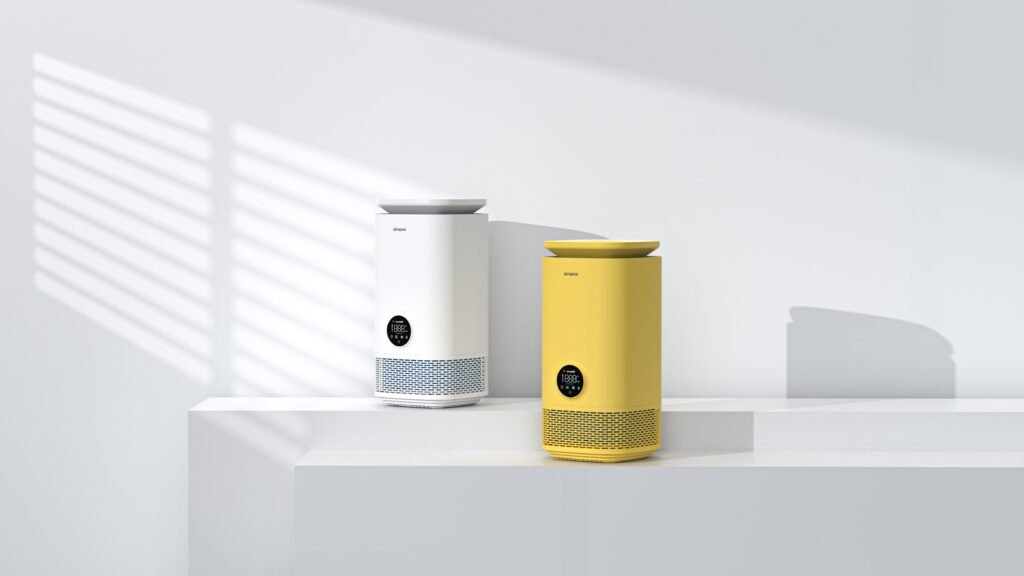

T7 exhibition stand
The Aimbon Air Health Cabin T7 Pro is an all – in – one air management device developed based on Water – Gated Air Health Technology. It integrates five core functions: air disinfection, deep purification, rapid odor removal, humidity balance, and ecological negative ions(Five – Dimensional Air Ecology Management System). This device constructs a closed – loop purification system for 25 – 35㎡ spaces, specifically targeting pollutants such as PM2.5, PM0.3 ultrafine particles, formaldehyde, kitchen fumes, bacteria, and viruses. With a negative ion concentration of 8,500 ions/cm³ at 3 meters (meeting the forest – level standard), a 1,000ml/H humidity balance capacity, and a 320m³/h healthy air output, it is specially designed for respiratory – sensitive groups, newly renovated homes, and pet – owning families.
The H12 – grade HEPA filter of the Aimbon Air Health Cabin T7 Pro intercepts 99.9% of PM2.5, while the T – type filter captures ultrafine particles like PM0.1, improving purification efficiency by 50% compared to traditional single HEPA solutions.
The immersion – type T – type filter of the Aimbon Air Health Cabin T7 Pro, combined with a UV – C deep ultraviolet module, achieves a 99.9% killing rate for bacteria and viruses, enabling medical – grade human – machine coexisting disinfection (Sichuan Health Disinfection Certificate [2023] No. 0012).
With a formaldehyde CADR of 150m³/h, the Aimbon Air Health Cabin T7 Pro reduces formaldehyde concentration in a 30㎡ space from 0.2mg/m³ to 0.04mg/m³ (national standard ≤0.08mg/m³) within 4 hours, with a decomposition rate of 90%.

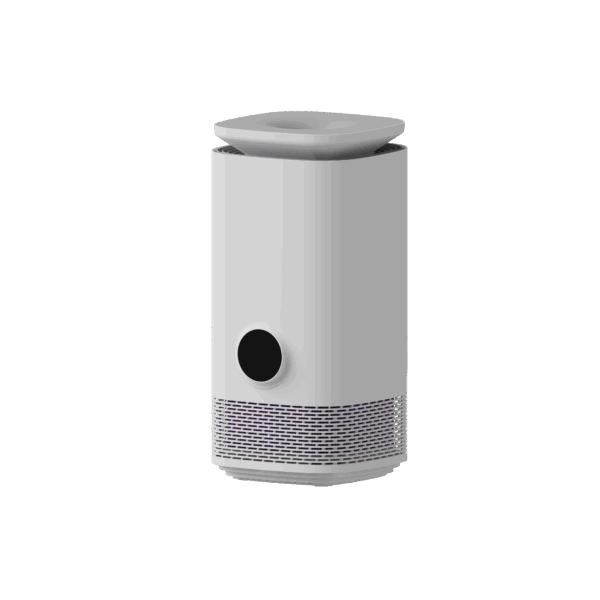

T7 PRO
The negative ion module of the Aimbon Air Health Cabin T7 Pro releases millions of negative ions, with a concentration of 8,500 ions/cm³ at 3 meters—equivalent to the air quality around waterfalls—to improve respiratory comfort.
The 4.2L water tank of the Aimbon Air Health Cabin T7 Pro, combined with a 1,000ml/H humidification capacity, raises humidity in a 30㎡ space from 30%RH to 45%RH within 1 hour. The automatic air – drying function reduces the probability of filter mold growth by 90%.
The Aimbon Air Health Cabin T7 Pro has a maximum power of 42W, and in sleep mode, it only consumes 1.2W, using 0.36 kWh in 24 hours, with an annual electricity cost of about 131 RMB.
T7 Interior Drawing
Equipped with a BLDC brushless motor and a noise – reduction air duct, the Aimbon Air Health Cabin T7 Pro has a minimum noise of 23dB(A)—lower than the library environment (30dB)—and is certified by the National Sleep Environment Authority.
| Scene Type |
Core Needs |
T7 Pro Technical Response |
Measured Effect |
| Newly Renovated Homes |
Formaldehyde Decomposition, Odor Removal |
Formaldehyde CADR 150m³/h + UV – C Disinfection |
90% formaldehyde reduction in 4h, odor vanishes in 30min |
| Respiratory – Sensitive Groups |
Ultrafine Particle Filtration, Negative Ions |
H12 HEPA + T – type Filter + 8,500 ions/cm³ Negative Ions |
87% users report reduced rhinitis attacks |
| Pet – Owning Families |
Hair Capture, Odor Decomposition |
Dual filters intercept 99.9% hair + ion cluster odor decomposition |
95% users feedback significant odor improvement |
| Maternal & Infant Environments |
Bacteria Disinfection, Humidity Comfort |
Medical – grade disinfection + 45%RH humidity balance |
99.9% bacteria killing rate, stable humidity |
| Item |
Value |
Item |
Value |
| Particulate CADR |
300m³/h |
Formaldehyde CADR |
150m³/h |
| Product Size |
251×258×520mm |
Packaging Size |
280×280×560mm |
| Humidification Capacity |
1000ml/H |
Water Tank Capacity |
4.2L |
| Net Weight |
4.6kg |
Maximum Power |
42W |
- Dry – wet dual filters (HEPA H12 + T – type filter)
- UV – C deep ultraviolet disinfection module + PM2.5 laser sensor
- Automatic cleaning and air – drying system + water purification filter
- Temperature and humidity sensor + real – time water level monitoring (accuracy 5%)
- HEPA H13 filter (filtration efficiency up to 99.99%)
- Plasma disinfection module + TVOC sensor
- WiFi module + TFT full – touch color screen
- Detachable air quality display screen
T7 Outdoor Diagram
- Invention Patent “Water – Gated Air Purification System and Method” (ZL202210034567.8), improving purification efficiency by 50%.
- Utility Model Patent “T – type Filter Automatic Cleaning and Air – Drying Device” (ZL202220123456.7), solving mold problems in traditional humidifiers.
- Medical – grade disinfection certification (Sichuan Health Disinfection Certificate [2023] No. 0012), supporting human – machine coexistence.
- CQC, CE, RoHS safety certifications, electromagnetic radiation <0.1μT (national standard limit 100μT).
- CNAS laboratory – issued CADR test report (particulate matter 300m³/h, formaldehyde 150m³/h).
The average formaldehyde CADR of peer products is only 80m³/h, while the Aimbon Air Health Cabin T7 Pro reaches 150m³/h—87.5% higher than the industry average.
90% of competitors have single purification functions, while the Aimbon Air Health Cabin T7 Pro integrates “disinfection + purification + humidification + negative ions”—improving cost – effectiveness by 60%.
Tests on 200 respiratory – sensitive users show 87% symptom improvement; 150 newly renovated families report odor disappearance 3 times faster than ventilation.
The AirWell + T7 Pro (Aimbon Air Health Cabin T7 Pro) reconstructs the indoor air ecology with Water – Gated Technology. It is not just an air purifier but a five – dimensional health management system integrating “purification – disinfection – humidification – negative ions”. From PM0.3 ultrafine particles to formaldehyde molecules, from bacteria to humidity imbalance, it safeguards every breath with medical – grade standards—what you purchase is not just a device, but an air health barrier for your family.
Start Your Forest – Level Breathing Experience with Aimbon Air Health Cabin T7 Pro Now
